Linux Firewall on a Floppy HOWTO (draft)

Standard Disclaimer
Introduction
What you need
Description
Quick Start
References
Details
Notes to Myself
Acknowledgements
Contacts

Standard Disclaimer

Use this information at your own risk. If anything breaks as a result of reading this document I, James Wayne Weller, will not be held responsible. I accept no liability for equipment or data lost or otherwise damaged as a result of these procedures. This implementation worked in my case and might work or help in yours. But if there is any damage done you get to keep both pieces

What you need to get started

Easy setup

rawrite.exe(if your doing this from DOS/Windows)
lfw.img
fwtools.img

Articulate setup

You should have linux installed on a working system if you want to do this. It needs minix fs support and ramdisk support.

kernel.img (read on if you want to compile your own)
filesystem.tar.gz

Introduction

Hi all,
this is my firewall-on-one-floppy howto. The need for this document arose when I wanted to connect my home LAN to the internet over my cable modem. My ultimate (and current) goal was to use linux as an embedded system for a 486 with two ethernet cards and a boot rom to start from the local network. Alas, I don't have boot roms (yet). So, floppy disk is the next best.

Description

The firewall kit is composed of two disks. I know ... I said it fit on one floppy, and it does. The first disk is broken into two parts. The first part is the kernel itself, while the second part is the ramdisk to mount as the root (/) filesystem. The *only* binaries on the ramdisk image are ones *needed* to bootstrap the system, get a console going, and mount further disks. That means that you can boot your system with the first disk, pull the disk, and walk away. It will be firewalling. This boot procedure requires most of the following binaries and scripts.

    /bin/sh         symbolic link to kiss
    /bin/kiss       a very simple shell to type commands at
    /bin/ash        a smarter shell for scripting
    /bin/ifconfig   ties ethernet cards to IPs...
    /bin/route      set network routes
    /bin/login      enables log on at the terminal


    /sbin/init      daddy process
    /sbin/agetty    prompt for credentials at the terminal
    /sbin/ipchains  ip packet filter configuration tool
    /sbin/dhcpcd    dhcp client daemon (to pull down IP from server)
    /sbin/insmod    needed to insert ethernet module
    /sbin/rmmod     needed to remove ethernet module
    /sbin/fw.sh     an ash shell script to setup firewalling rules
    /sbin/mount     needed to mount floppies
    /sbin/umount    needed to unmount floppies

You're probably wondering how your going to get anything done on this box. I mean this is a pretty sparse collection of binaries isn't it? The answer is the second floppy disk. If you want this computer to do more than just sit in the closet and filter packets, you'll need to login as root, insert the second floppy disk, and type...

    [/root]# mount -t minix /dev/fd0 /usr/bin

Now, /usr/bin is already in your path. So, now you have access to all the binaries on that minix filesystem. My default /usr/bin/ disk has...

    /usr/bin/ping        send icmp packets
    /usr/bin/netstat     find out what your host is listening for (netstat -an)
    /usr/bin/traceroute  found out the network route your packets take to a host
    /usr/bin/telnet      login to a remote host
    /usr/bin/ftp         file transfer from remote host
    /usr/bin/pico        the end all simple editor
    /usr/bin/grep        look for regular expressions
    /usr/bin/ssh         ssh 1.3 client
    /usr/bin/gunzip      gzip uncompress
    /usr/bin/gzip        gzip compression
    /usr/bin/tar         tape archiver
    /usr/bin/cat         output files
    /usr/bin/sed         stream editor
    /usr/bin/tail        look at the end of a file
    /usr/bin/yes         output a string until terminated (good for I/O testing)
    /usr/bin/df          shows available diskspace
    /usr/bin/free        shows memory usage
    /usr/bin/head        output the top of a file
    /usr/bin/passwd      change your password (temporarily b/c ramdisk)

Notice, because it's physically seperated from your runtime firewall, bad-guy cracker types don't have access to those (unless you mount the disk after you've been rooted). If you want ultra-security bring down your outside internet interface if your are going to mount the tools disk.

      styx:[/]# umount /usr/bin

Quick Start

DOS

Put a disk in the floppy and type

      c:\lfw> rawrite.exe lfw.img a:

Put another floppy in the drive

    c:\lfw> rawrite.exe fwtools.img a:

Linux

Put a disk in the floppy and type

    cat lfw.img > /dev/fd0

Put another floppy in the drive

    cat fwtools.img > /dev/fd0

Do the deed

Get a 386 or better motherboard with >= 6mb RAM and hook up two 3com 3c509 ethernet cards ($10~$15) and a 3.5in 1.44mb floppy drive. Yes, that's it :) Make a DOS boot disk and run the 3x509cfg.exe file available from http://www.3com.com. My cards are set to the following values.

       eth0 irq=10 ioport=0x300
       eth1 irq=5  ioport=0x220

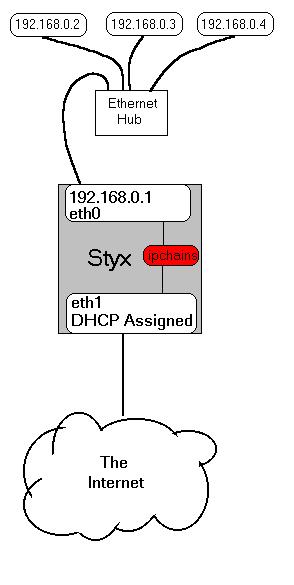

Plug your internet connection into eth1 and your local network hub into eth0. Make sure you set all you other machines on your network to use any address from 192.168.0.[2-255]. The other machines should have a gateway address of 192.168.0.1 (styx). The gateway is eth0 on the firewall machine (styx).

Slap in the boot disk and turn on that frankenstein monster. You should see a simple kernel description as it straps the hardware. Then you will get a login prompt. The box is now firewalling. You should be able to reach the internet from your computers behind the firewall. You can login as root; the password is Firecracker2000.

NOTE: This only works if there is a DHCP server on your internet connection.

References

Linux Documentation Project

        specifically see...
        The bootdisk howto
        The ipchains howto
        The ethernet howto
        The kernel howto
        The net 3/4 howto
        The linux network administrators guide (NAG)

Also see the ultra-cool LOAF (linux on a floppy) project for a great distribution and some ideas on making boot disks.

Implementation Details

Make a kernel with the features you need. Make sure to compile in your ethernet card as a module. The kernel can be gzipped (make zImage) or bzipped (make bzImage). Since their is no lilo to pass ether= paramaters to we need the probing the modules do. If someone out there knows how to get a static driver to find two cards *let me know*.
Prepare the kernel for booting from a floppy using a ramdisk.
Find out the size of your kernel
```
    [/root]# du -h kernel.img
    336K    kernel.img

```
Write that down, because this is the hard part. The kernel has 16 bits at the beginning of it that set important boot values.
```
    bits  0-10:  set the offset to the ramdisk in 1024k blocks. unsigned int.
    bits 11-13:  unused bits
    bit     14:  flag indicating whether to load ramdisk. (1) for us
    bit     15:  flag indicating whether to prompt for root fs. (0) for us

```
Now we need to set up that 16 bits. My kernel image was 336k convert that to a binary value and you get
```
    366d == 101010000b
            |       |
            8       0

```
Notice thats only 9 bits and we get 0-10, 11 bits, to use. So pad it with zeros.
```
    00101010000b
    |         |
    10        0

```
Now we know that the next three bits are unused so we set them to 0
```
    00000101010000b
    |            |
    13           0

```
The next bit is the ramdisk flag. We want to load a ramdisk so we set it to 1.
```
    100000101010000b
    |             |
    14            0

```
Finally, the prompt bit. We know exactly where our ramdisk is and it's not on a second media so their is no need to prompt the operator for it. So, we set this flag to 0.
```
    0100000101010000b
    |              |
    15             0

```
Now, that we have accounted for that sixteen bit number we can convert it back to decimal and setup our kernel image to use the floppy.
```
    0100000101010000b == 16720d

```
Now issue these commands using the numbers you got from the above arithmetic.
```
    [/root]# rdev  kernel.img /dev/fd0
    [/root]# rdev -r kernel.img 16720
    [/root]# rdev -R kernel.img 0

```

There now, you have a kernel ready to boot from a floppy. The next step is to get a filesystem for that kernel to mount. If your new to devices and permissions then I recommend hacking up my or loaf's root filesystems.

Note: You'll need ramdisk and minix support in your current kernel.

Fill the ramdisk with zeros.

    [/root]# dd bs=1k if=/dev/zero of=/dev/ram0
    dd: /dev/ram0: No space left on device
    4097+0 records in
    4096+0 records out

Note: I always think of dd standing for disk duplicate. It is the worlds most articulate copy command.

    bs=     means the size of our blocks.
    count=  means the number of blocks to copy
    if=     is the input file
    of=     is the output file
    skip=   skip this many blocks in the input file
    seek=   skip ahead this many blocks in the output file

Make a 2048k minix filesytem on the ramdisk.

    [/root]# mkfs.minix /dev/ram0 2048
    682 inodes
    2048 blocks
    Firstdatazone=26 (26)
    Zonesize=1024
    Maxsize=268966912

Mount it in a convenient directory

    [/root]# mkdir rd
    [/root]# mount -t minix /dev/ram0 rd

Then put my, loaf's or any other file system in the ramdisk

    [/root]# cd rd
    [/root]# tar -xzf ../filesystem.tar.gz

Now hack, hack, hack in the rd directory until you get a filesystem you want to boot with. Be careful. A booting system is a fragile thing. Move in small undoable steps. Once you have a good filesystem save it.

    [/root]# cd rd
    [/root]# tar -cf ../ramdisk.tar *
    [/root]# cd ..

Unmount the ramdisk

    [/root]# umount rd

fill the ramdisk with zeros to optimize compression

    [/root]# dd if=/dev/zero bs=1k of=/dev/ram0
    dd: /dev/ram0: No space left on device
    4097+0 records in
    4096+0 records out

Make yet another minix filesystem

    [/root]# mkfs.minix /dev/ram0 2048
    682 inodes
    2048 blocks
    Firstdatazone=26 (26)
    Zonesize=1024
    Maxsize=268966912

I like to force a check of it to avoid warnings when mounting

    [/root]# fsck.minix -fa /dev/ram0
    fsck.minix, 1.2 - 11/11/96 / util-linux 2.6
    Forcing filesystem check on /dev/ram0.

Mount the ramdisk again

    [/root]# mount -t minix /dev/ram0 rd

Now put your usable filesystem back in. The reason we do this twice is to make the compression work better. Your tinkering in the rd directory caused fragmentation.

    [/root]# cd rd
    [/root]# tar -xspf ../ramdisk.tar *
    [/root]# cd ..

Good! now we need a copy of the filesystem on the disk called ramdisk

    [/root]# dd bs=1k count=2048 if=/dev/ram0 of=ramdisk
    2048+0 records in
    2048+0 records out

next compress the ramdisk using gzip

    [/root]# gzip -9 ramdisk

Great! Now all we need to do is put the kernel and the filesystem you designed onto a floppy disk.

    [/root]# dd bs=1k if=kernel.img of=/dev/fd0
    336+0 records in
    336+0 records out
    [/root]# dd bs=1k seek=336 if=ramdisk.gz of=/dev/fd0
    614+1 records in
    614+1 records out

Note the seek value in the second command is 336. Then, remember that my kernel was 336k. So we put the ramdisk *right* after the kernel.

Now, go boot and see you did :)

Notes to Myself

The shell program kiss cannot parse the ! marks
that ipchains uses. So I used ash to start up the firewall instead.

If you look at the boot script /etc/rc you'll see it's all very straight forward.

        BEGIN /etc/rc
        -------------------------------------------------------------------------------
        #load ethernet (use your own module)
        /sbin/insmod /3c509.o

        # Mount the /proc filesystem
        mount -t proc proc /proc

        # Set the hostname
        echo "styx" > /proc/sys/kernel/hostname

        # Configure the loopback device
        /bin/ifconfig lo 127.0.0.1 netmask 255.0.0.0
        /bin/route add 127.0.0.1 lo

        #bring up the local network interface
        echo "Local interface"
        /bin/ifconfig eth0 192.168.0.1

        #bring up the world interface
        echo  "Internet interface"
        /sbin/dhcpcd eth1

        #turn on ip forwarding
        echo "Turning in IPV4 forwarding"
        echo 1 > /proc/sys/net/ipv4/ip_forward

        #load firewalling rules
        echo "Loading firewall rules"
        /sbin/fw.sh
        -------------------------------------------------------------------------------
        END /etc/rc

The default password is Firecracker2000,
but you can change it by mounting the tools floppy disk. Realize that this is only for the duration of your boot. When you reboot the original ramdisk will be reloaded and the password will again be Firecracker2000. If you want the password to be permanent you'll have to rebuild the ramdisk with a different /etc/passwd file.
```
    styx:[/]# mount -t minix /dev/fd0 /usr/bin
    styx:[/]# passwd
    ---CLIPPED---
    styx:[/]# ftp my.working.box
    ---FTP the /etc/passwd file to your rd directory--
    styx:[/]# umount /usr/bin

```
Now build a new boot disk as described above. You'll find your designated password works.
How do I know this thing is firewalling?
Login and run...
styx:[/]# ipchains -L
How to I modify my firewall rules?
Read the ipchains HOWTO then modify the /sbin/fw.sh or type the new rules at the command line. They won't be permanent until you rebuild the ramdisk.
What are the default rules?
```
    ipchains -A input -j DENY -s ! 192.168.0.0/16 -d 192.168.0.0
    ipchains -A forward -j MASQ -b -s 192.168.0.0/16 -d 0/0

```
Deny all traffic not from the local net bound for the local net. This should never happen, because the 192.168. addresses are unroutable on the internet at large. But it could happen if someone was able to get into your outside interface. But then the only thing they could do would be to ssh to another of your boxes. Which hopefully would have good passwords. Here's the hard part. SSH is on your tools floppy which isn't mounted. HA HA HA. So cracker elite just got caught in a dead end. Anybody have some ideas on this?
Masquerade all traffic between the internet (0.0.0.0/0) and the local network (192.168.0.0/16).
You must use passive FTP unless you modify your firewall rules.

Aknowledgements

Thanks Jason Guild and Tom Kircher for bridging my knowledge gaps.

Thanks to all the people who work at and with LDP

Thanks to the thousands of developers who made this and all the tools it relies on exist in the first place

Thank You GNU

Contacts

I am open to ALL suggestions.
Jim Weller (NOSPAM_jim@jimweller.net)
Homepage http://www.jimweller.net
